Kyocera FS-9130DN

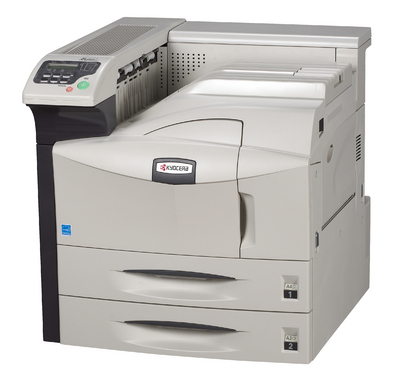

FS-9130DNPrinter With a print speed of 40ppm in A4, the Kyocera FS-9130DN is ready to carry you through the heaviest of loads without slowing down. Fast, efficient and reliable, this printer also has a highly functional modular design. The paper and finishing options make it easy to fit the printer to your department’s precise needs.

40ppm A4 and 23ppm A3 departmental printer
64MB memory standard, upgradeable to 576MB
Duplex and network connectivity as standard
100 department codes to track and control printer use
PDF direct printing from USB Flash Memory devices
High volume paper options and versatile finishing features
Long-life components and easy maintenance

View/Download Product Brochure

Specifications

General

Technology

Kyocera ECOSYS, Laser

Engine speed

Max. 40/23 pages per minute A4/A3 simplex Max. 33/16 pages (16/8 sheets) per minute A4/A3 duplex

Resolution

1,200 dpi

Warm-up time

60 seconds

Time to first copy

3.5 seconds

Dimensions

Main unit: 599 x 646 x 615 mm

Weight

Main unit: Approx. 68 kg

Power consumption

Printing: 475 W, Stand-by: 10 W, Power-Saving (ECOpower): 4.9 W

Power source

AC 220 ~ 240 V, 50/60 Hz

Noise (ISO 7779)

Printing: 51 dB(A), Stand-by: 37 dB(A), Power-Saving (ECOpower): Immeasurably low

Certifications

TÜV/GS, CE, PTS

Paper Handling

Input capacity

2 x 500-sheet universal paper feeder, 60-105 g/m², A3, A4, A4R, A5R, B4, B5,B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT 200-sheet multi-purpose tray, 45-200 g/m², A3-A6R, Custom (88 x 148 mm to 297 x 450 mm) Max. input capacity with optional paper feeder PF-750: 4,200 sheets Duplex as standard supports A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, 60-80 g/m²

Output capacity

500 sheets face-down

Further information All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by Kyocera under normal environmental conditions.

Print

Processor

PowerPC 750FL / 600 MHz

Memory

Standard 64 MB + ECOmemory, max. 576 MB in 1 DIMM slot

Emulations

PCL6/PCL5e incl. PJL, PostScript 3 (KPDL 3), PDF direct print, Automatic Emulation Sensing (AES), HP-7550A (KC-GL), Line Printer, IBM Proprinter X24E, Epson LQ-850, Diablo 630

Fonts

Fonts: 80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417)

Downloadable fonts

Kyocera, PCL + TrueType format, Type 1 + 3 format

Features

eMPS – job management functionality with optional hard disk HD-5 for quick copy, proof and hold, private print and job storage 100 department codes for Accounting, PDF direct printing via USB Flash memory device, professional finishing capabilities

Interfaces

Standard interface

Fast Ethernet 10/100Base-TX, High speed bi-directional parallel (IEEE 1284), USB 2.0 (Hi-Speed), USB Host Interface dedicated for USB Flash Memory device, KUIO-LV option interface slot

Multiple interface connection (MIC)

Allows simultaneous data transfer via up to four interfaces, with each interface having its own virtual printer.
